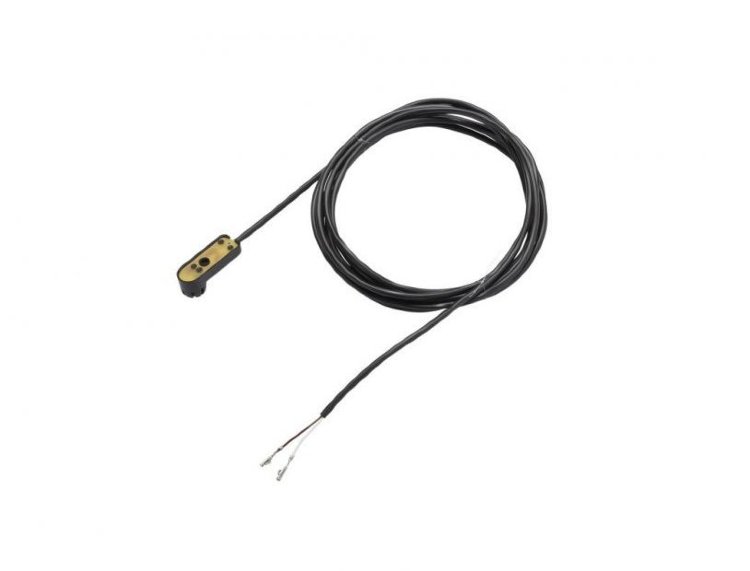

Webasto AT2000ST temperature sensor L-2,5m

Температурный датчик.

Installation of the additional sensor of temperature.
Heaters optimum maintain desirable temperature if air temperature, flowing round temperature sensor, is close to air temperature in those rooms which need to be heated. But it isn't always possible, first of all because of features of an installation site of the heater. The external sensor of temperature which is installed directly in the corresponding part of the room is in that case used.

Installation.

Installation is made as follows:

1. To choose an installation site for the external sensor of temperature.

Attention:

- The sensor of temperature shouldn't be installed so that it was directly blown by a stream of warm air, and not near heat sources (for example, the regular heater of the car);

- He should be established at average height in a cabin of the car and on a surface as close as possible to vertical;

- The installation site shouldn't be in an area of coverage of direct sunshine;

- The sensor of temperature shouldn't be installed curtains, etc.

2. To uncover and take out load resistance from the control unit

3. To fix the external sensor of temperature in the right place and to lay a cable to the heater.

4. To connect the plug of the external sensor of temperature in the X5 socket and to put on a cover.

5. To carry out trial start-up and to check work.
